Nip F-type Valve

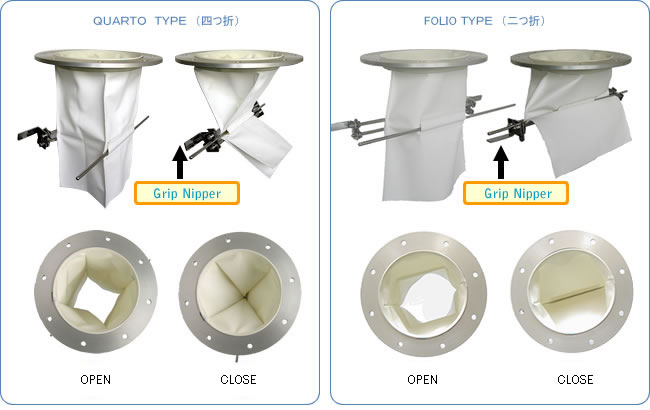

A simple powder valve in which cloths sleeve is pinched with grip nipper. Easy to setup as a stop valve of powder featuring high sealing.


Nip Valve

このページのコンテンツには、Adobe Flash Player の最新バージョンが必要です。

Adobe Flash Player を取得



このページのコンテンツには、Adobe Flash Player の最新バージョンが必要です。

Adobe Flash Player を取得





Characteristics

  • Compact and light weight (under 1/10 of metal valve)
  • Minimum powder residue due to having no obstacles on the sleeve
  • Self cleaning function of adhered powder with varying tube shape
  • Less expensive than a metal valve

Use

  • Inlet and outlet nozzle of a powder and bulk solids equipment
  • Powder inlet and outlet of a hopper, bin, and container
  • Dust collector outlet nozzle

Lineup and Specification

Size80A ~ 300A (also available in square flange)
DriveManual, Pneumatic pressure
Material (body)Aluminum, plated aluminum, stainless steel, polypropylene
Material (sleeve)Various coated cloths
(Polyester, nylon, pyrene, polyethylene, PTFE, synthetic rubber, and others)




Product: Nip S-Type Valve

A simple powder valve in which polypropylene is pinched with grip nipper. Semi-transparent and easy to monitor movement of the content, lightweight and simple to setup as a powder stop valve featuring high sealing.


Characteristics

Nip S-Type Valve
  • Compact and light weight (1/10 of metal valve)
  • Easy to monitor the movement of contents due to the sleeve being semitransparent
  • Minimum powder residue due to having no obstacles on the flow surface
  • Polypropylene is highly safe and widely used in food and medical plants
  • Less expensive than a metal valve

Use

  • Inlet and outlet nozzle of a powder and bulk solids equipment
  • Powder inlet and outlet nozzle of a hopper, bin, and container
  • Dust collector exhaust

Lineup and Specification

Size150A ~ 300A 150⟨ ~ 300⟨
DriveManual, Automatic (Pneumatic pressure)
Material (body frame)Stainless steel
Material (sleeve)Polyethylene
